Static Mesh Merger 1.0.1 3D Tools 4.0 Community

Submitted by user Emetiva12; MIT; 2026-08-26

# Static Mesh Merger

### Lightweight static mesh batching for Godot 4

**Mesh Merger** is a lightweight Godot editor plugin that combines multiple static `MeshInstance3D` nodes into a single optimized mesh while preserving existing collision data.

Select the meshes you want to merge, click **Merge Selected** in the 3D editor, and Mesh Merger handles the rest.

> **Less clutter. Fewer objects. Same geometry. Existing collision preserved.**

## Features

* **Merge selected meshes** into a single `ArrayMesh`
* **Preserve materials and textures** from the original meshes
* **Preserve existing collision hierarchies** without modifying their collision shapes
* **Move preserved collision** under the newly created merged mesh
* **Remove the original mesh hierarchies** after a successful merge
* **Create a new `MeshInstance3D`** containing the merged geometry
* **Save merged meshes** as reusable `.res` resources
* **Automatically back up original nodes** before making changes
* **Keep backup scenes out of exported builds**
* **Editor-only workflow** — no runtime systems or scripts required

## Collision Preservation

Mesh Merger does **not** attempt to generate, convert, or rebuild collision geometry.

If a selected mesh has an existing collision hierarchy such as:

```text
MeshInstance3D
└── StaticBody3D
└── CollisionShape3D
```

the collision hierarchy is preserved without modification.

After merging, it becomes part of the new merged mesh hierarchy:

```text
MeshInstance3D_merged
└── Collision
└── StaticBody3D
└── CollisionShape3D
```

The original collision shape remains the same resource and shape type.

This means Mesh Merger can preserve Godot collision shapes such as:

* `BoxShape3D`
* `SphereShape3D`
* `CapsuleShape3D`
* `CylinderShape3D`
* `ConvexPolygonShape3D`
* `ConcavePolygonShape3D`
* Other existing `CollisionShape3D` configurations

Mesh Merger simply preserves the collision data that already exists rather than trying to recreate it.

> **If your mesh already has collision, Mesh Merger keeps it.**

## Great for Open-World Games

Mesh Merger is particularly useful for **large open-world environments** where thousands of static objects can make a scene unnecessarily expensive to manage.

Large environments are often built from hundreds or thousands of smaller modular pieces:

```text
Open World
├── House
│ ├── Wall
│ ├── Roof
│ ├── Window
│ └── Door
├── Rocks
├── Trees
├── Ruins
├── Cliffs
└── Decorations
```

Many of these objects never need to move independently.

Mesh Merger lets you combine appropriate static sections into larger meshes:

```text
Open World
├── Village_merged
├── Forest_merged
├── Ruins_merged
├── Cliffs_merged
└── Decorations_merged
```

This can reduce the number of individual scene objects Godot needs to manage while keeping the underlying geometry intact.

For open-world projects, you can also merge **smaller logical sections** rather than turning the entire world into one enormous mesh. This keeps your environment modular while still reducing unnecessary object overhead.

> **Build your world from modular pieces. Merge the pieces that don't need to stay separate.**

## How It Works

Before:

```text
Environment
├── Rock_01
├── Rock_02
├── Rock_03
├── Rock_04
├── Rock_05
└── Rock_06
```

After clicking **Merge Selected**:

```text
Environment
└── Rock_merged
```

The individual meshes are combined into one mesh while their materials are preserved.

If collision exists, it is preserved as well:

```text
Before

Environment
├── Rock_01
├── Rock_02
│ └── StaticBody3D
│ └── CollisionShape3D
└── Rock_03
```

becomes:

```text
After

Environment
└── Rock_merged
└── Collision
└── StaticBody3D
└── CollisionShape3D
```

The original collision data is not regenerated or converted.

Your original nodes are also backed up automatically, so you have a way to recover them if needed.

## Is This Nanite?

**No.**

Mesh Merger is nowhere near as sophisticated as Nanite.

It does **not** provide:

* Virtualized geometry
* Hierarchical cluster culling
* Automatic geometric LOD
* Geometry streaming
* Nanite-style visibility management

Instead, Mesh Merger takes a much simpler approach:

> **Combine lots of static objects into fewer objects.**

Think of it as a small, editor-side **static mesh batching tool** rather than a Nanite replacement.

## Best Used For

Mesh Merger is designed primarily for **static level geometry**, including:

* Open-world environments
* Environment pieces
* Buildings
* Rocks
* Props
* Decorations
* Modular level sections
* Large static structures
* Other geometry that doesn't need to move independently

It's especially useful when a scene contains large numbers of small static meshes that don't need to remain separate at runtime.

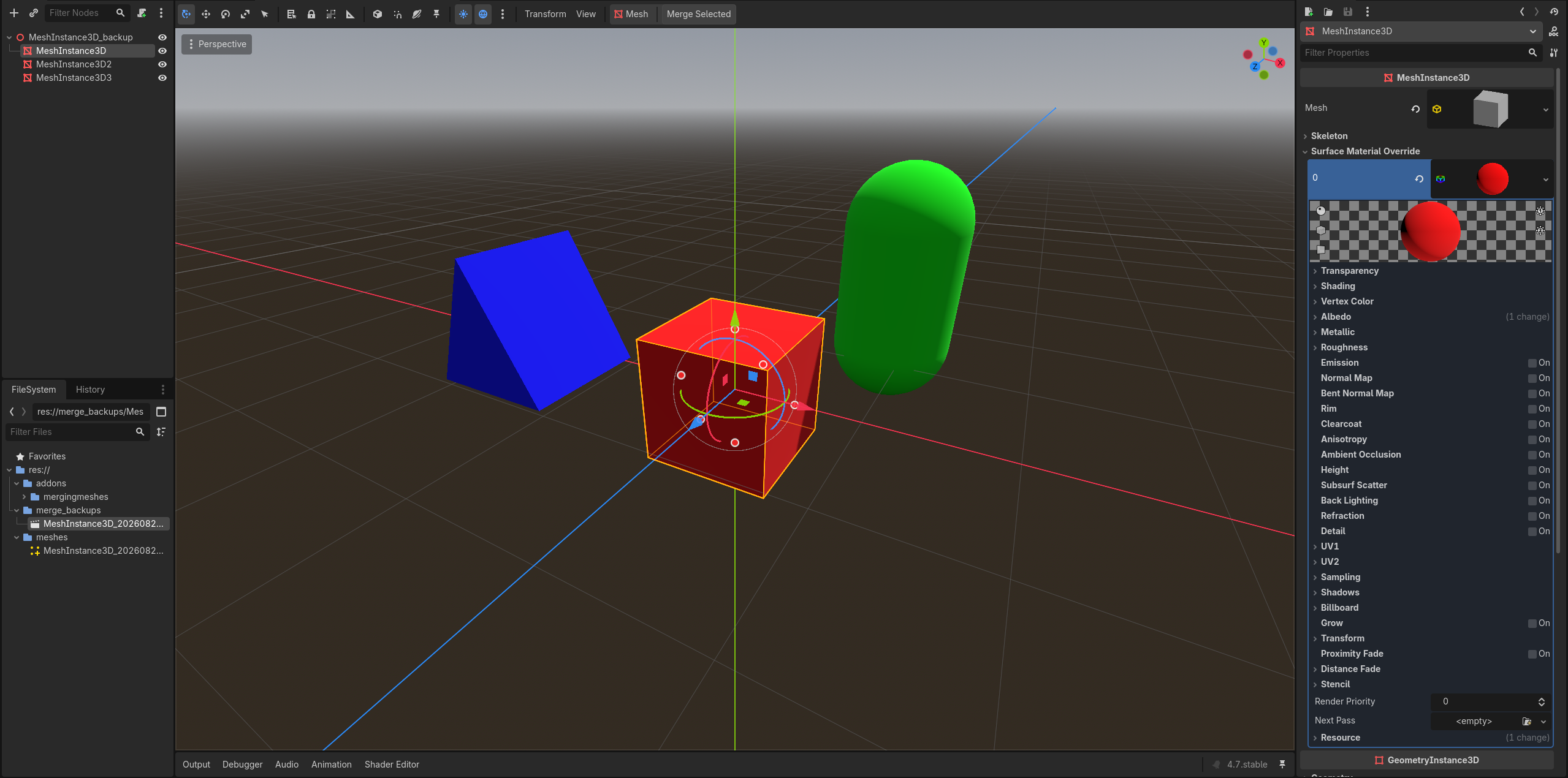

## Safety First

Mesh Merger creates a backup **before modifying the scene**.

Backups are stored in:

```text
res://merge_backups/
```

The plugin also prevents these backup scenes from being included in exported builds.

Merged meshes are stored in:

```text
res://meshes/
```

So your original scene data isn't simply thrown into the void.

## Usage

1. Select the `MeshInstance3D` nodes you want to merge.

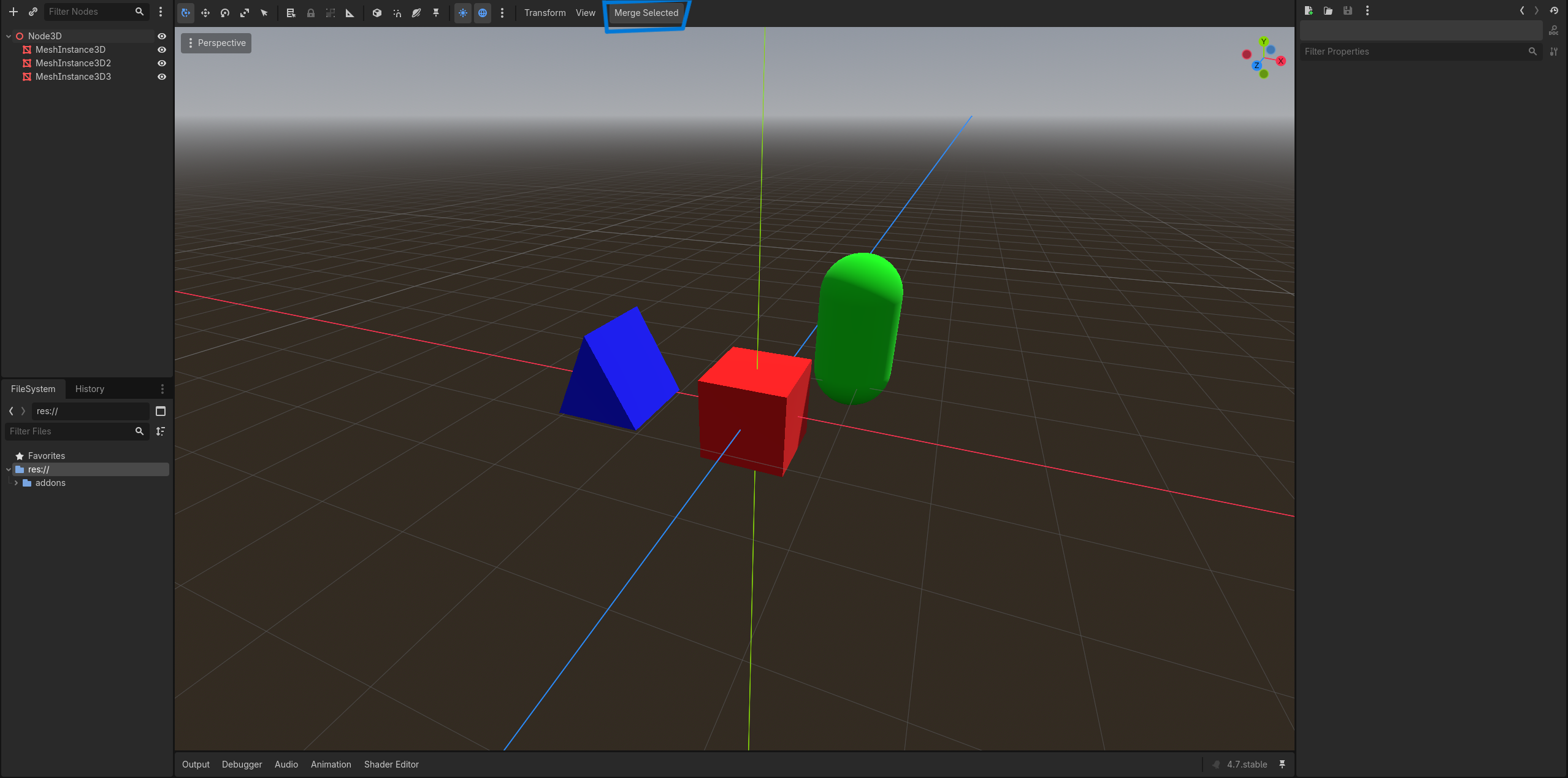

2. Click **Merge Selected** in the 3D editor.
3. Mesh Merger creates a backup.
4. The meshes are combined into a single `ArrayMesh`.
5. Existing collision hierarchies are preserved without modification.
6. The original mesh hierarchies are removed.
7. A new `MeshInstance3D` is created with the merged geometry.
8. Preserved collision hierarchies are placed under the new merged mesh.
9. The merged mesh resource is saved for reuse.

That's it.

## Requirements

* **Godot 4.x**
* Static `MeshInstance3D` geometry

## Limitations

Mesh Merger is intentionally simple.

It does **not** automatically provide:

* Runtime mesh merging
* Dynamic object support
* LOD generation
* Occlusion culling
* Geometry streaming
* Automatic collision generation
* Collision shape conversion
* Nanite-style virtualized geometry

Collision is **preserved**, not generated.

If an object has no existing collision, Mesh Merger will not create collision for it.

If an object needs to move independently, animate independently, or otherwise remain a separate object, **don't merge it**.

## Why?

Godot can handle a lot of geometry, but a scene containing thousands of individual static objects can create unnecessary overhead.

Mesh Merger provides a simple editor-side solution:

**Build your level normally → add collision where needed → merge what doesn't need to stay separate → ship a cleaner scene.**

No runtime plugin logic. No complicated setup. Just merge and go.

---

### Status

**Early release / actively developing**

If you find a bug or have an idea for an improvement, feel free to open an issue or contribute.
