I'm designing a game level

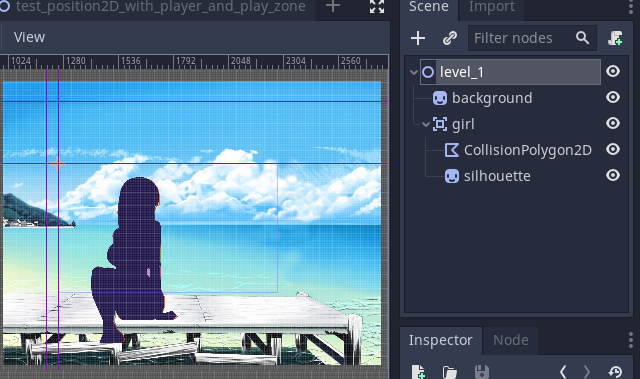

level_1 node tree

So I use the editor to position and scale both pictures visually (in level_1).
The background is wider than the silhouette, I position them manually relative to each other plus individual scaling.
background has a scale of 1.1, the silhouette a scale of 0.8

After that, I add my level to the game:

game node tree

So I now positioned manually the level_1 inside game_ui and also apply a scale to the whole level_1 scene (0.5)
I also placed my playground above the game_ui with some offset too.

Now I want to crop the visually displayed background of level_1 image to the size of my game area the playground:

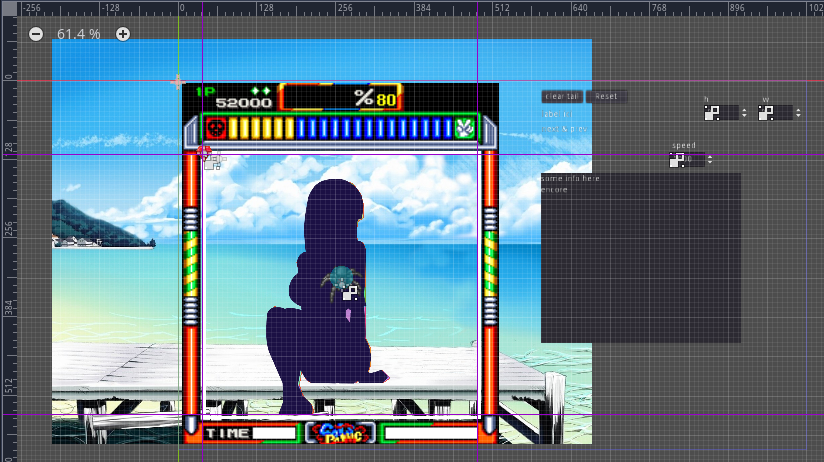

level_1 inside the game

The difficulty is to apply the transform of each node scaled and positioned correctly...

I managed to find the values, by manipulating directly is the game by adjusting by hand:

clip_w = play_area.points[2].x * ratio
clip_h = play_area.points[2].y * ratio
clip_zone = Rect2(
    clip_offset.x ,
    clip_offset.y ,
level_bg.position = offset_position

Now how do I transform the size of the playground, to the (clip_w, clip_h)?
I found this one : ratio = 1 / (level_bg.scale.x * level_1.scale.x)
But I can't figure out how to compute the clip_offset nor the offset_position of the clipped background inside level_1.

I think it could be achieved by a applying some Transorm2D but I don't know how.

Do you have some hint for me?


in Engine by (33 points)

Use a Camera2D node to select what's on the actual screen when the game is running

1 Answer

0 votes
Best answer

Thanks A112Studio,

I finally found a solution. I don't know the Camera2D yet. And my game is static.
As I also need to extract part of the background image for the gameplay, I need to know how to get any surface on it from the playground coordinate.

Here is my solution, script in game_ui (there's some extra code because I pasted a development code which also include interactive modification of the values):

func _ready():
    level = get_node("level_1")
    level_bg = level.get_node("background")
    playground = owner.get_node("playground")
    play_area = playground.get_node("area_contour")

    # compute clip to local coordinate of the image bg
    # we need the report the playground dimension to level_bg, so we pass
    # by global position to get the conversion (scale + offset)
    var gp_background = level_bg.to_global(Vector2.ZERO)
    var gp_playground = play_area.to_global(play_area.points[0])

    # the new clip offset will be moved the the clip starting point
    # because we use level_bg corner origin and the origin will become
    # the new clipped corner at clip_offset
    var lp_clip_offset = level_bg.to_local(gp_playground)
    # we compute the clip_size at level_bg origin, play_area are at scale 1
    # so the coordinate are OK
    var lp_clip_size = level_bg.to_local(gp_background + play_area.points[2])

    clip_w = lp_clip_size.x
    clip_h = lp_clip_size.y
    clip_offset = lp_clip_offset

    # position the new offset with playground top corner position
    var lp_offest_clipped = level.to_local(gp_playground)
    offset_position = lp_offest_clipped

    clip_zone = Rect2(
        clip_offset.x ,
        clip_offset.y ,
    level_bg.position = offset_position
by (33 points)
